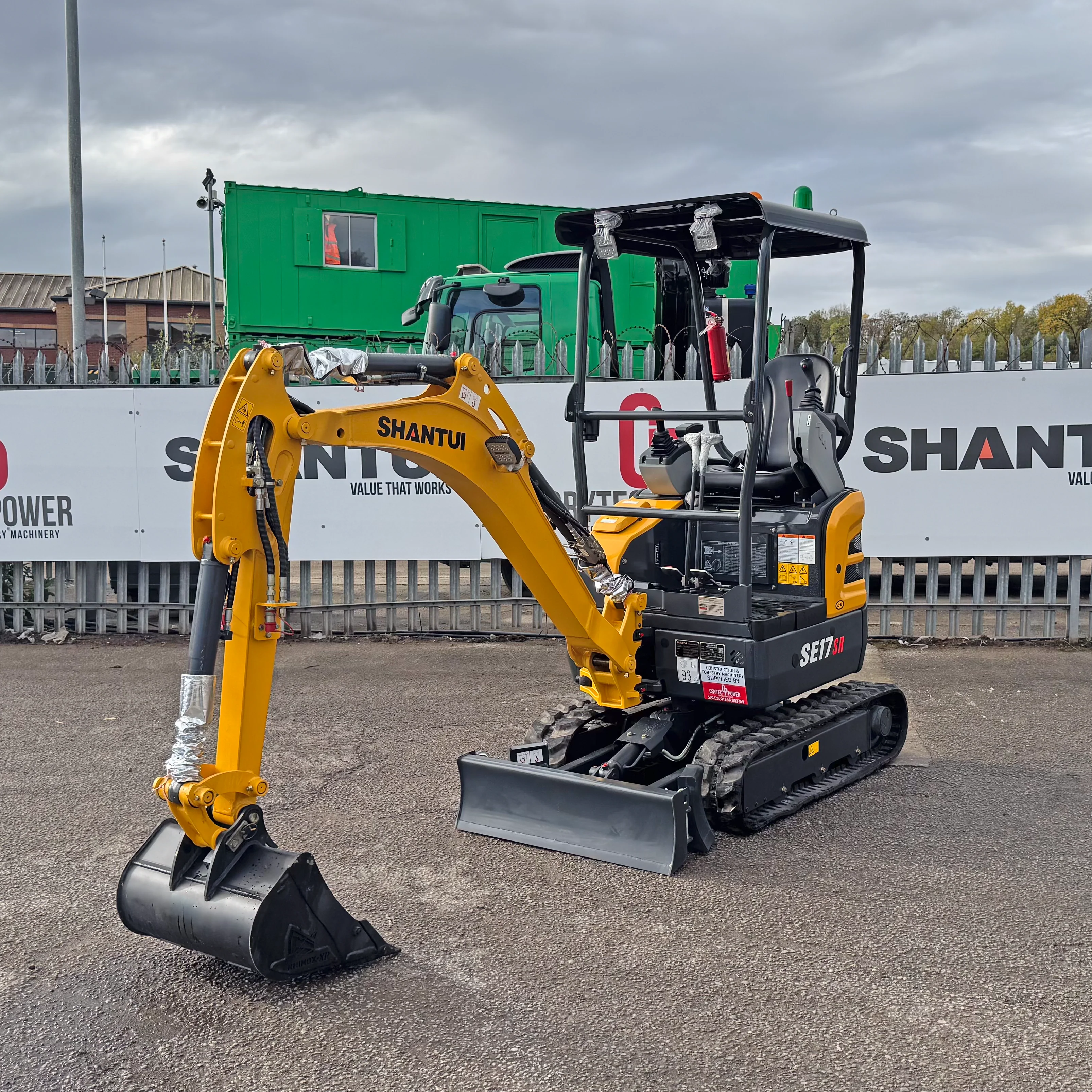

Shantui SE17SR Mini Excavator | Kubota Engine Euro Stage 5 | 1800kg | 3 Cylinder

PRICE - MESSAGE OR CALL FOR THE BEST DEAL!

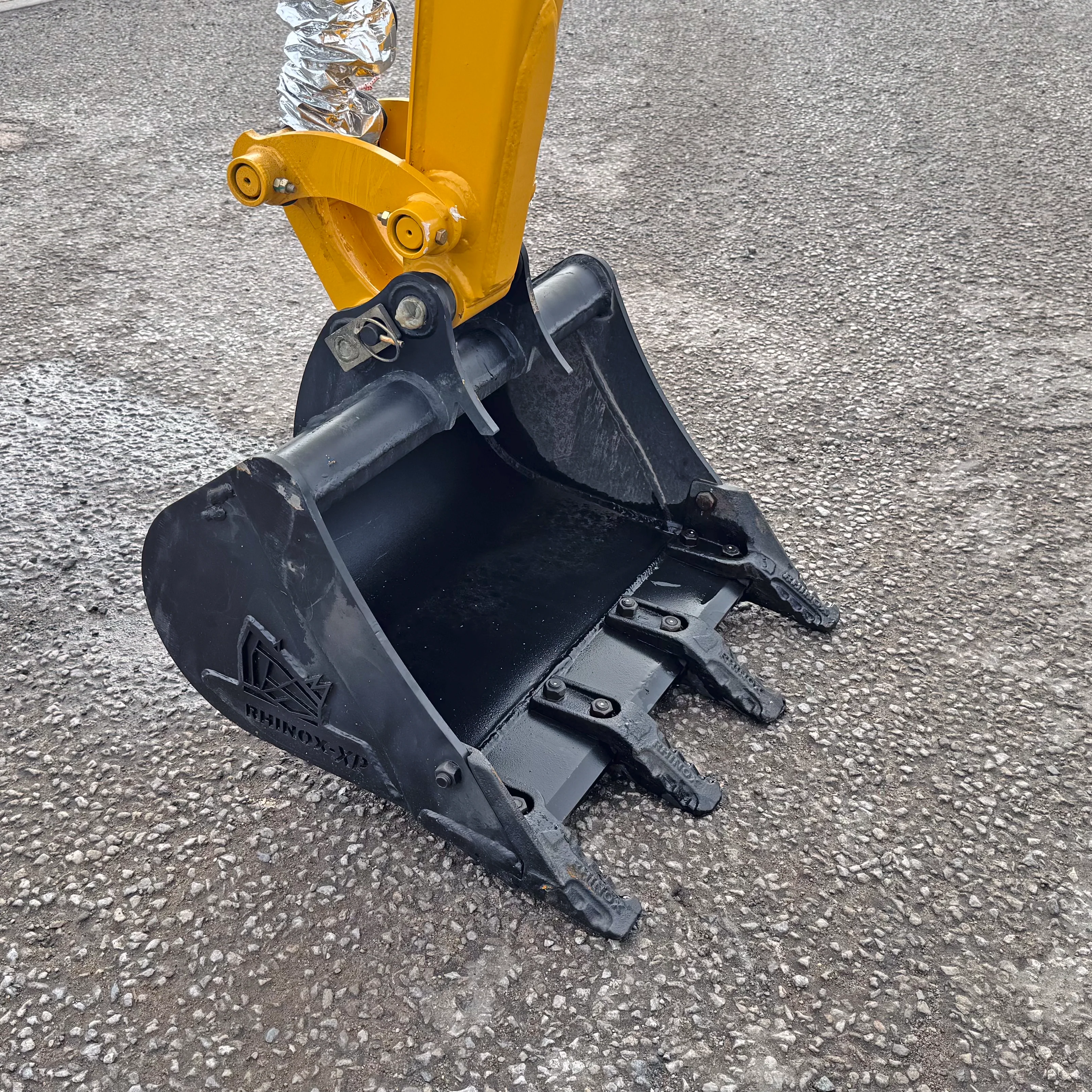

RHINOX 24"/600mm Trenching bucket AND 36"/900mm Grading Bucket INCLUDED.

Please message us to arrange delivery.

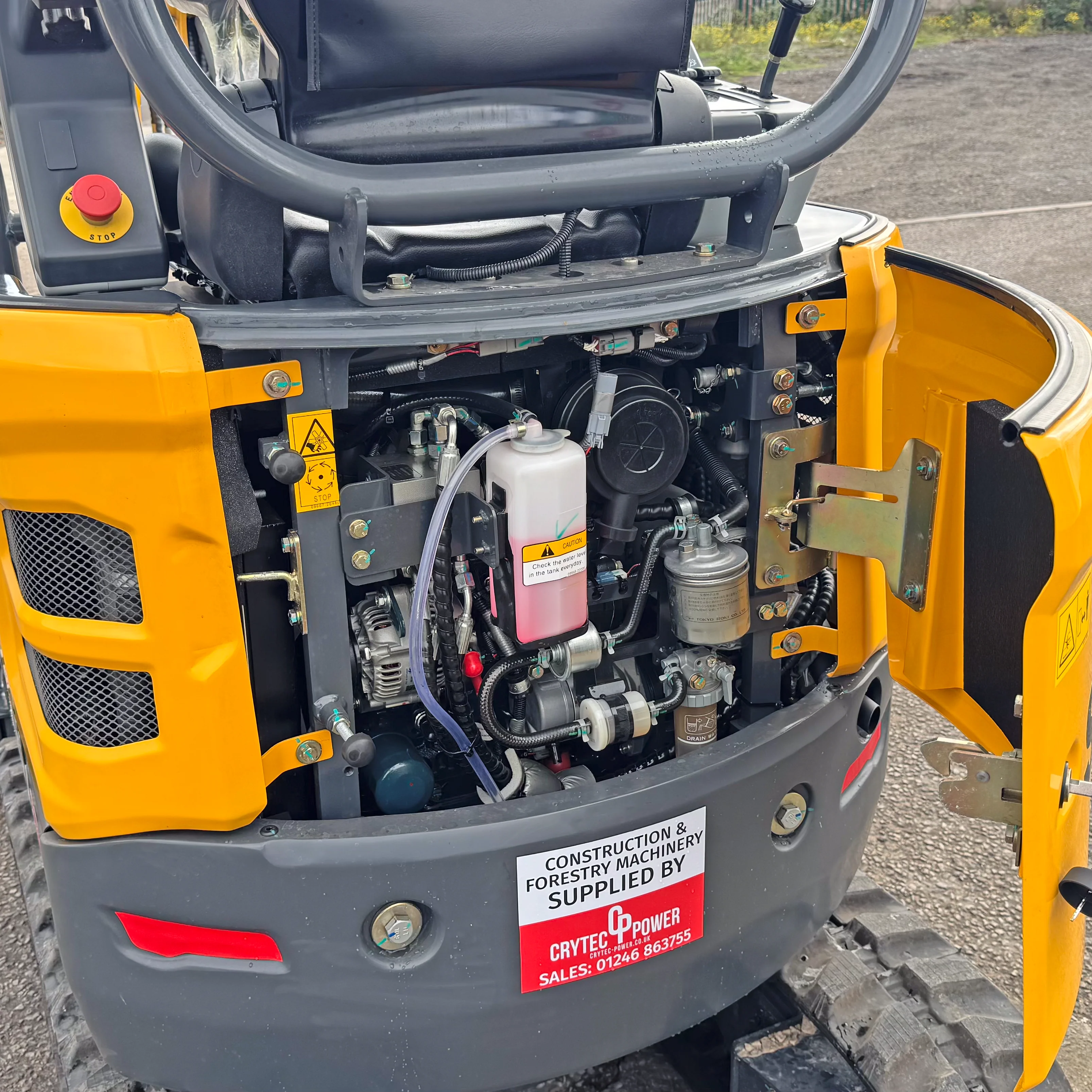

Motor

• Model: KUBOTA D902
• Type: Water-cooled 3-cylinder engine
• Emissions Standard: Euro 5 / Stage V
• Displacement: 0.898 L
• Performance: 16 hp (11.8 kW) @ 2300 rpm

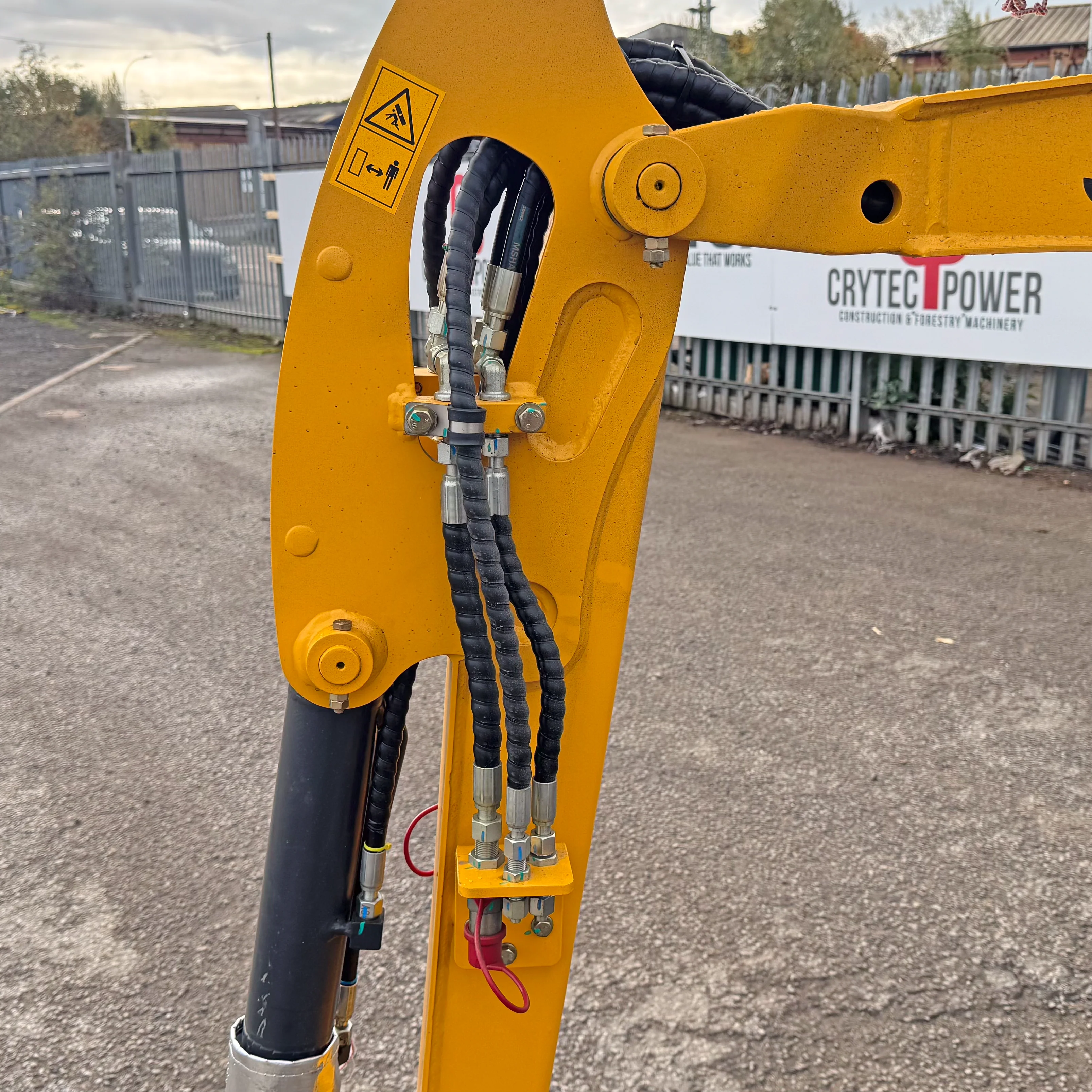

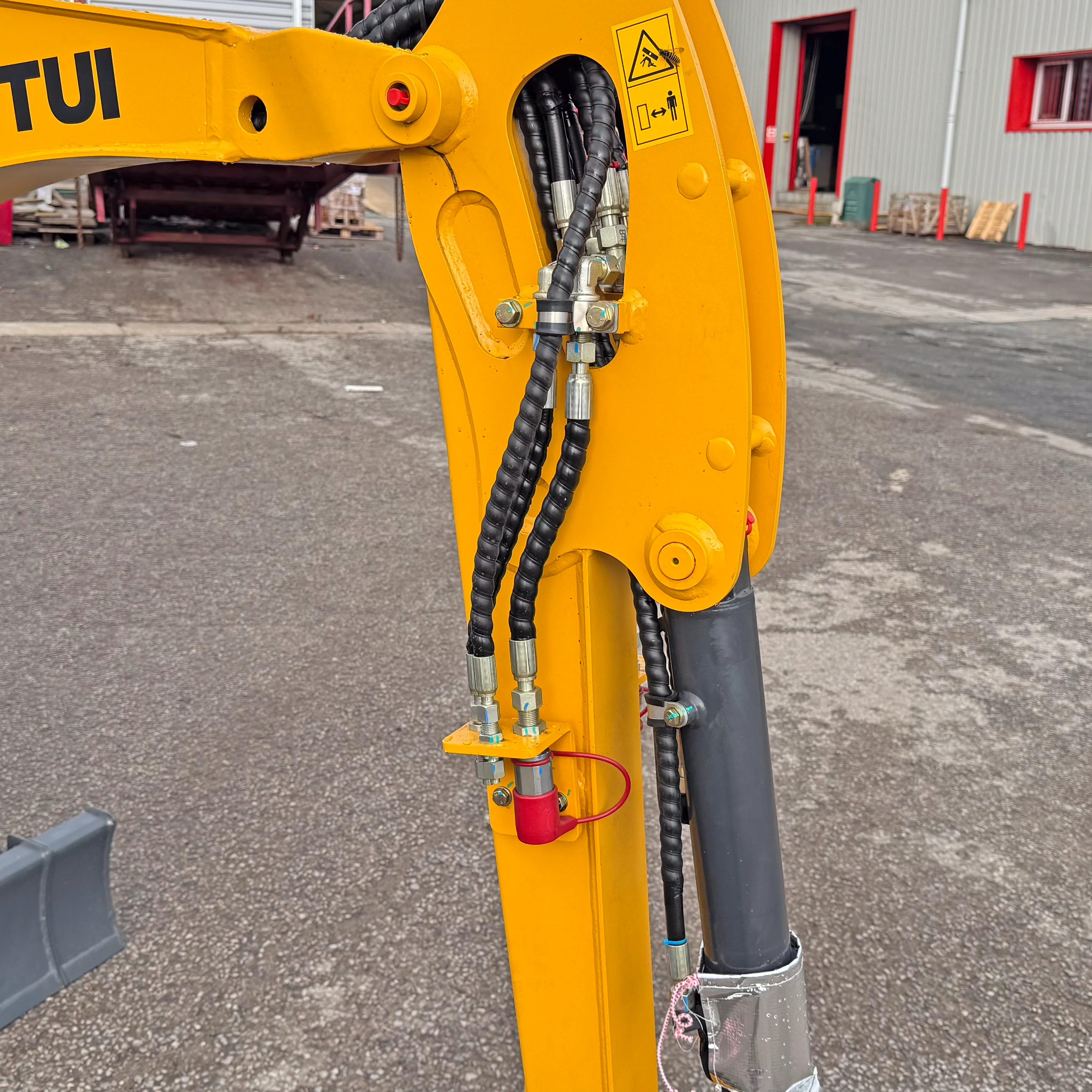

Hydraulic System

• Pump: Hengli HP5VS28 (Axial piston variable displacement)
• Control Block: Hengli HVSE-09
• Traction Motors: Eddie FTM01
• Swivel Motor: Eaton SW2.5K
• Max Hydraulic Flow: 64.4 L/min
• AUX 1 Flow: 28 L/min
• AUX 2 Flow: 15 L/min

Tear Strength (ISO6015)

• Bucket: 16 kN
• Arm: 9.5 kN

Shovel

• Type: Excavator bucket (450 mm)
• Capacity: 0.04 m³

Drive

• Type: Axial piston motor
• Rollers: 2×3
• Driving Speed: 2.2 / 4.3 km/h
• Max Pulling Force: 18 kN
• Climbing Ability: 58%

Swivel System

• Panning Speed: 0–9.5 rpm

Filling Quantities

• Fuel Tank: 19 L
• Cooling System: 5 L
• Engine Oil: 3.7 L
• Hydraulic Oil Tank: 20 L

Ground Pressure

• Chain Width: 230 mm
• Ground Pressure: 29 kPa

Operating Weight

• Weight: 1800 kg

Dimensions (mm)

• A Transport Length (arm down): 3570
• B Total Height (canopy): 2400
• C Chassis Width (retracted): 990
• D Undercarriage Width (extended): 1300
• E Chassis Length: 1587
• F Upper Body Width: 990

Working Area (mm)

• A Max. Digging Height: 3535
• B Max. Discharge Height: 2445
• C Max. Digging Depth: 2270
• D Vertical Digging Depth: 1910
• E Max. Digging Radius: 3910
• F Digging Radius at Ground Level: 3845
• G Min. Swivel Radius (work equipment): 1495
• H Min. Tail Swing Radius: 650
• I Ground Clearance (Counterweight): 450

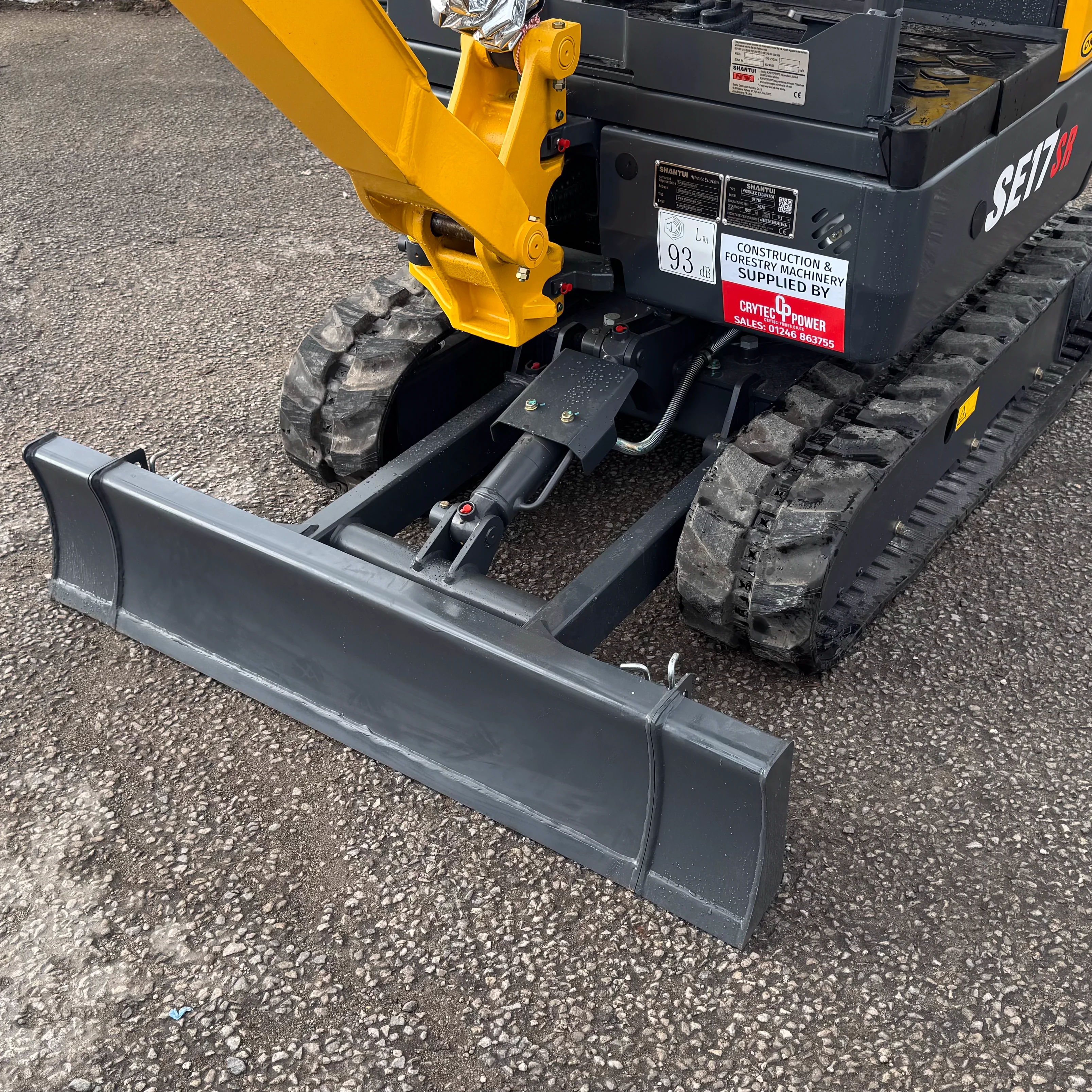

• J Bulldozer Max. Lifting Height: 280
• K Bulldozer Max. Digging Depth: 190
• L Boom Offset Left Max.: 385
• M Boom Offset Right Max.: 510
• Boom Swivel Angle (L/R): 57° / 61°

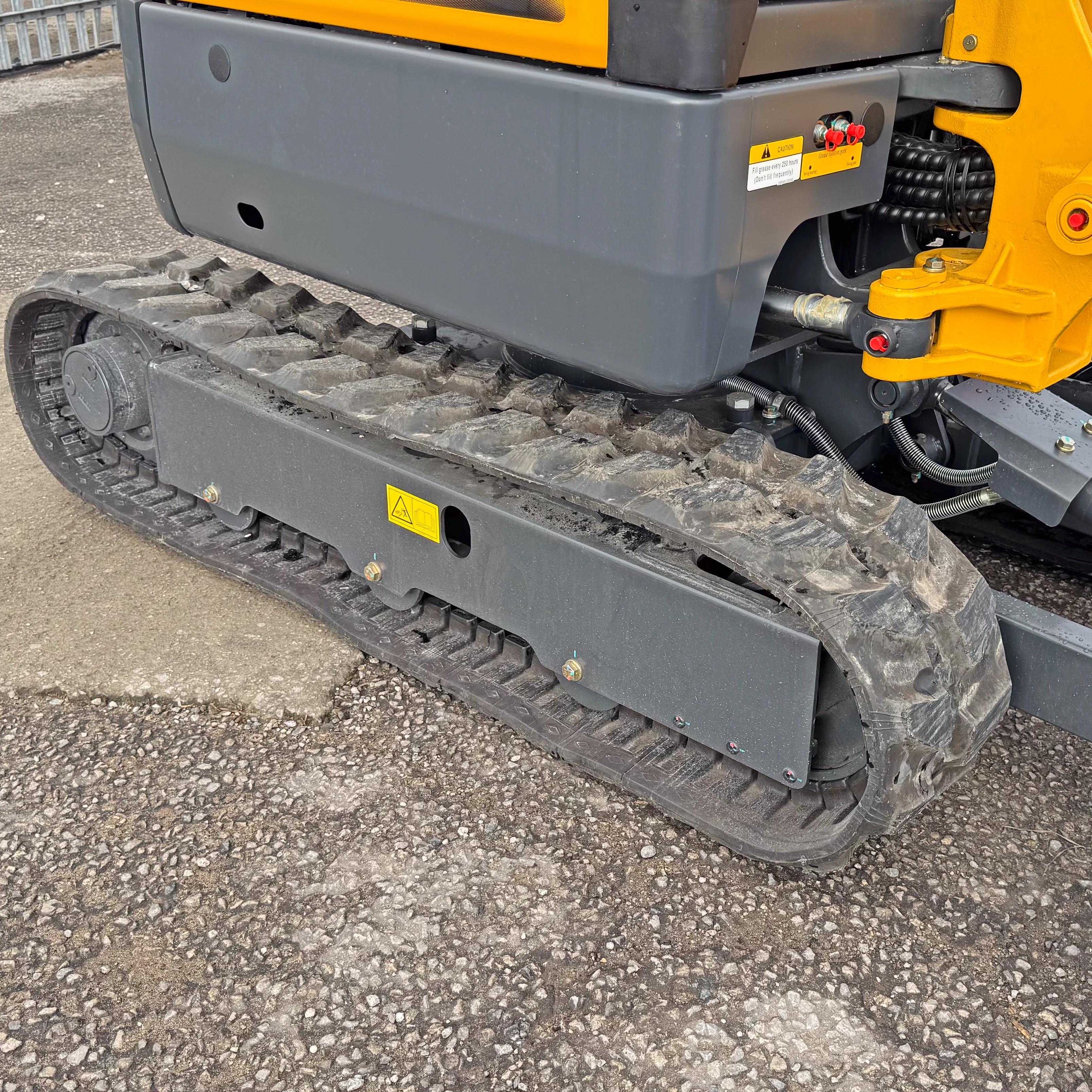

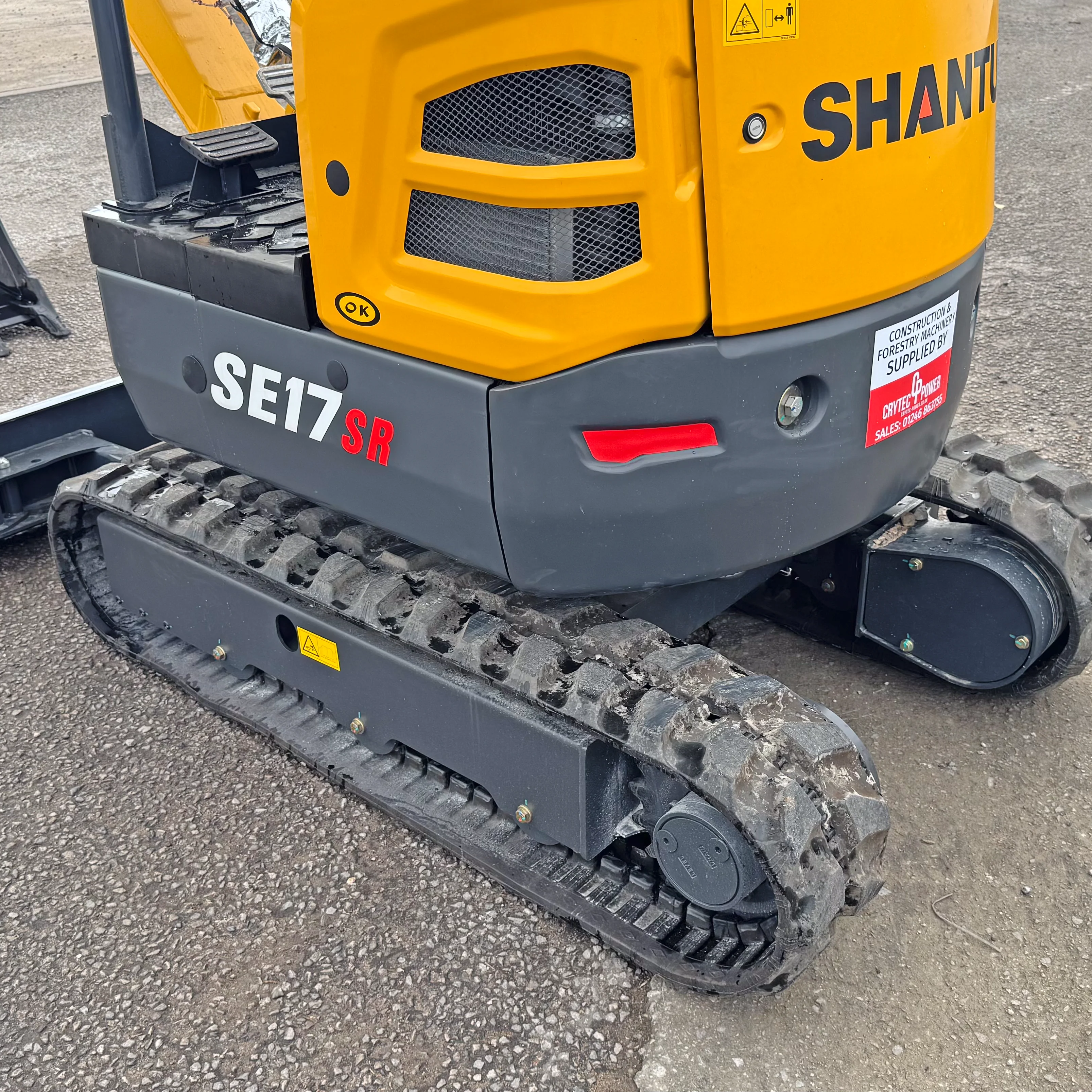

Comes with rubber tracks as standard.

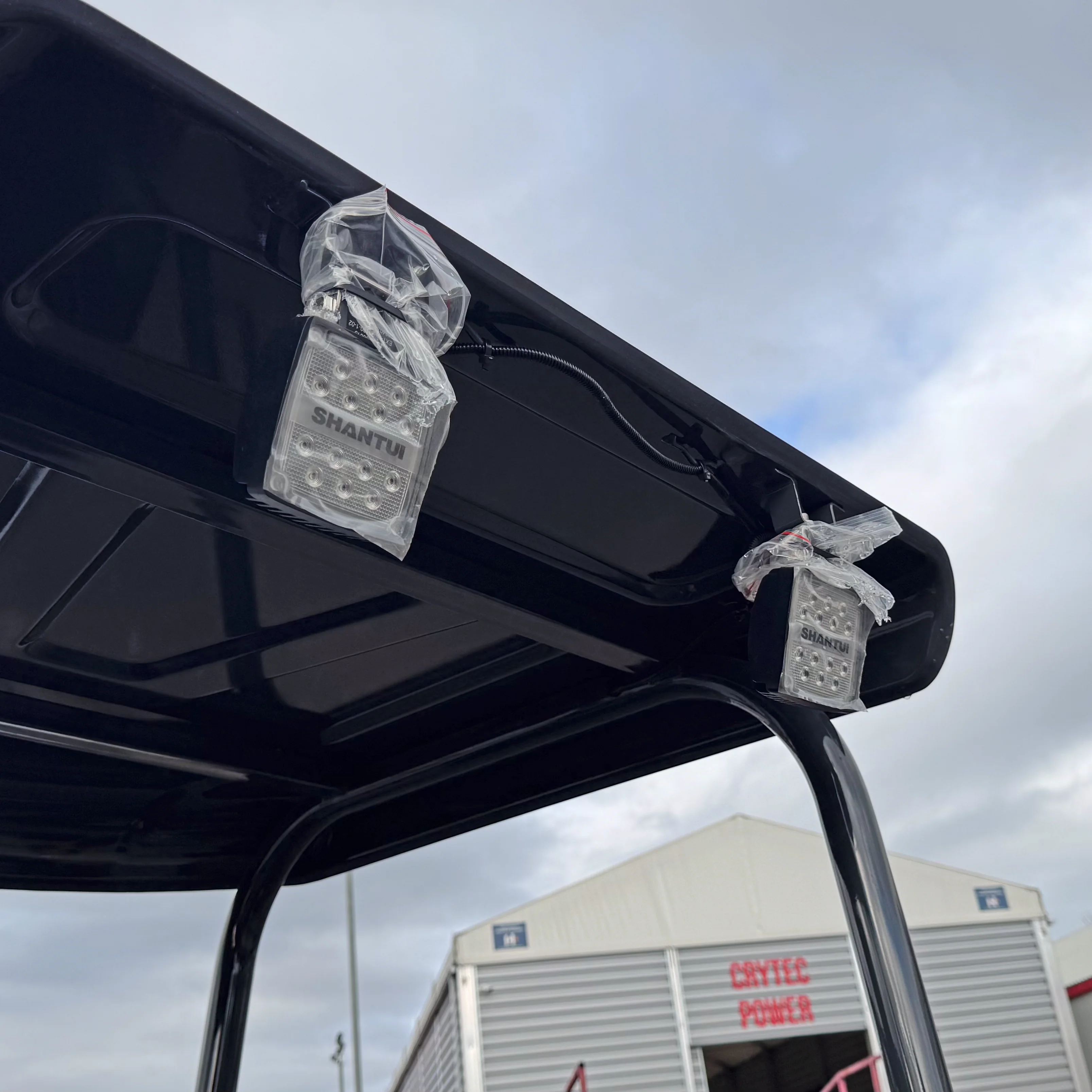

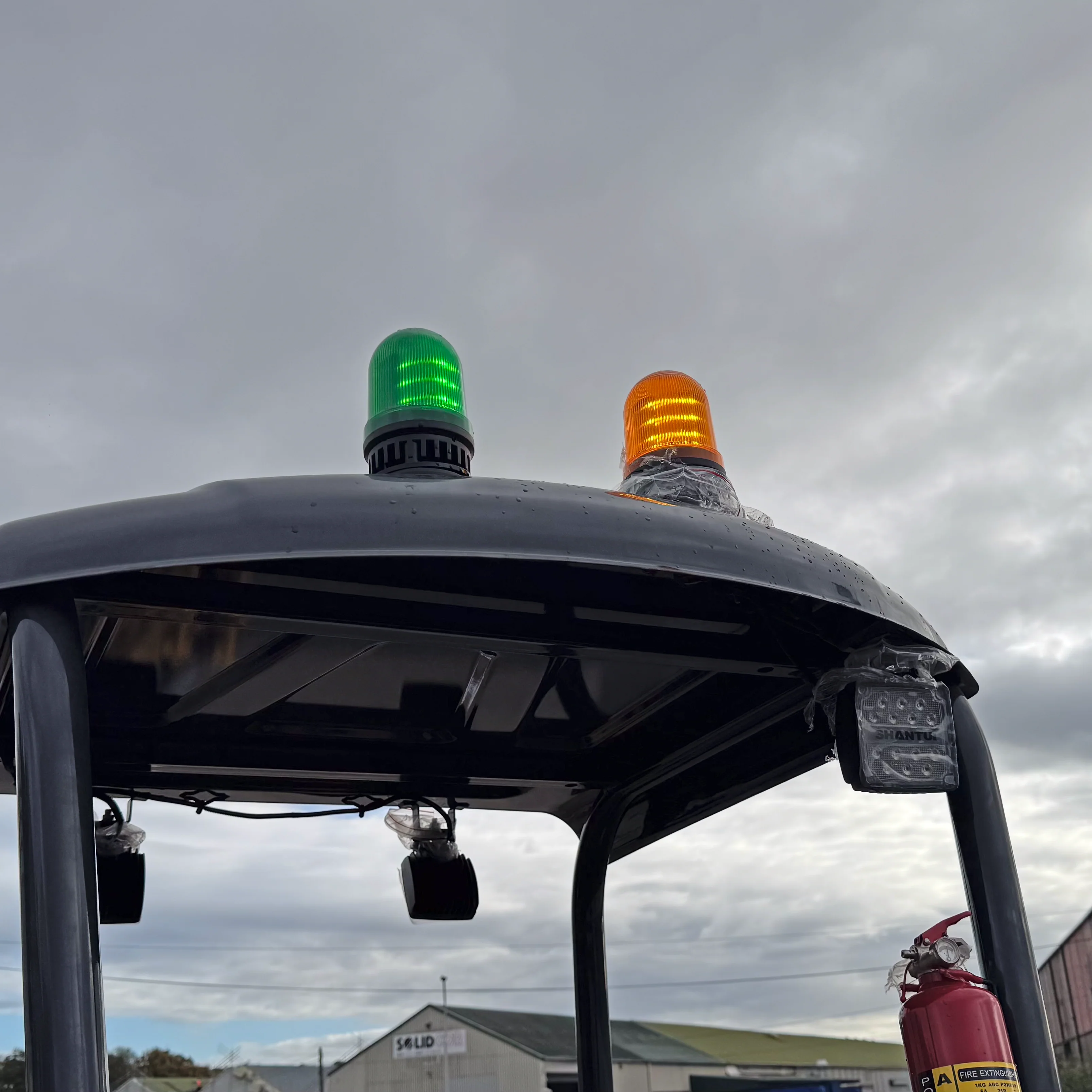

UK Spec including amber and green flashing lights.
